Description
When you import a sat file in Dynamo or even a cad file in Revit and then you want to grab those elements in Dynamo, you usually have to make a custom selection. Since this may be a burden, there are a set of nodes that can be implemented to ease that process.
One of them I called SepparateCurvesByDistance and it’s purpose is to make groups out of sets of selection lines from Revit or other environments.

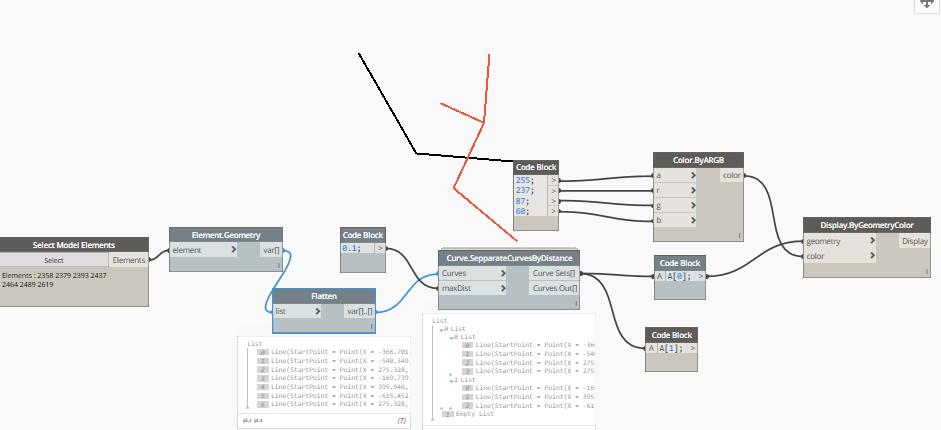

![SepparateCurvesCN](https://digitteck.com/wp-content/uploads/2018/04/SepparateCurvesCN.png)
![SepparateCurvesCN](https://digitteck.com/wp-content/uploads/2018/04/SepparateCurvesCN.png)
The initial list contains all the curves in one set and the result is multiple sets with connected curves:
![SepparateCurves](https://digitteck.com/wp-content/uploads/2018/04/SepparateCurves.png)
![SepparateCurves](https://digitteck.com/wp-content/uploads/2018/04/SepparateCurves.png)
Solution
The implementation is below (not the most optimal since i made it when I was at the beginning of learning python and Dynamo, but it works)
import clr clr.AddReference('ProtoGeometry') from Autodesk.DesignScript.Geometry import * import re #The inputs to this node will be stored as a list in the IN variable. dataEnteringNode = IN class utils: ul = []; def __init__(self): self.ul = []; def isIterable(self, unit): t1 = t2 = False; if(isinstance(unit, (tuple, set, list, dict))): t1 = True; if(hasattr(unit, "__iter__")): iterstr = str(unit.__iter__()); if(re.search("System.Array", iterstr)): t2 = True; return (t1 or t2); def UnwrapList(self, list): self.ul = []; if(self.isIterable(list)): self.UnwrapL(list); return self.ul; else: return list; def UnwrapL(self, unit): if(self.isIterable(unit)): for item in unit: self.UnwrapL(item); else: self.ul.append(unit); ut = utils(); allnewlines = []; def sortLines(lines, maxdist): newSet = []; if(not ut.isIterable(lines)): return lines; else: lines = ut.UnwrapList(lines); idx = 0; lenL = len(lines); restarted = False; while(idx < lenL): if(len(newSet) == 0): newSet.append([lines[0]]); allnewlines.append([lines[0]]); del lines[0]; lenL -= 1; continue; if(idx == 0): restarted = True; _line = lines[idx]; sp1 = _line.StartPoint; ep1 = _line.EndPoint; found = False; for idset in range(len(newSet)): if(found): break; set = newSet[idset]; for clid in range(len(set)): if(found): break; cline = set[clid]; sp2 = cline.StartPoint; ep2 = cline.EndPoint; #checking if we have a match in the newSet if(sp1.DistanceTo(sp2) <= maxdist): found = True; if(sp1.DistanceTo(ep2) <= maxdist): found = True; if(ep1.DistanceTo(sp2) <= maxdist): found = True; if(ep1.DistanceTo(ep2) <= maxdist): found = True; if(found): newSet[idset].append(_line); allnewlines.append(_line); restarted = False; del lines[idx]; #checking if currently idx is at the end of lines array if(idx == lenL - 1): idx = -1; else: idx -= 1; lenL -= 1; if( (idx == lenL - 1) and (restarted == True) ): if(len(lines) > 0): allnewlines.append([lines[0]]); newSet.append([lines[0]]); del lines[0]; idx = -1; lenL -= 1; if(len(lines) <= 0 or lenL <= 0): break; if(idx == lenL - 1): idx = -1; idx += 1; return [newSet, lines]; __curves = IN[0]; __maxDist = IN[1]; #Assign your output to the OUT variable OUT = sortLines(__curves, __maxDist);
