Insertion Sort Of Property

Sorting in Dynamo involves many unnecessary visual nodes which complicates the script. Insertion sort of property is similar in output with Double Sort node but instead of pre-extracting the values to be sorted you just pass as a string the name of the proeperty

Let’s say you have a set of points and you want to order them by their X values.
Use insertion node of property by passing the list of points and in a text box the value “X”.

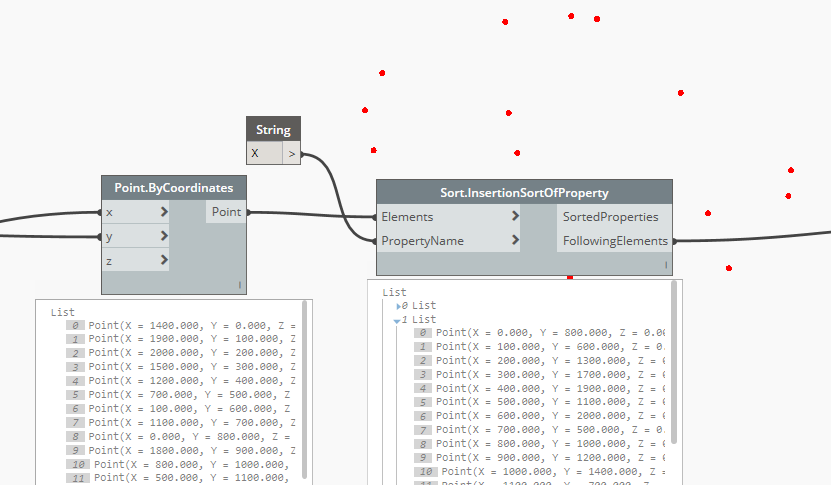

In this image you can see a set of points that are ordered by their X property values. There are 2 returns, one list representing the sorted X values and the second list representing the re-ordered points according to their corresponding X.

The code of achieving this involves using Reflection to determine if the property of field exists and using insertion sort to rearrange properties.

This solution will also sort elements along with their properties.

<pre class="theme:vs2012-black lang:c# decode:true ">

        public static object InsertionSortOfItemProperty(object data, string propertyName)
        {
            /// if no list is provided return the entry element
            if (!(data is IList))
                return new object[2] { 0, data };
            ///check list dimension
            IList listentry = (IList)data;
            foreach (var item in listentry)
                if (item is IList)
                    throw new Exception("Provide a single-dimension list of elements");
            ///collect data
            IList<double> propValues = new List<double>();

            foreach (var item in listentry)
            {
                Type itemtype = item.GetType();
                ///get info
                PropertyInfo pinfo = itemtype.GetProperty(propertyName, BindingFlags.Instance | BindingFlags.Public | BindingFlags.NonPublic);
                FieldInfo fInfo = itemtype.GetField(propertyName, BindingFlags.Instance | BindingFlags.Public | BindingFlags.NonPublic);
                if (pinfo == null && fInfo == null)
                    throw new Exception("No Property/Field by this name");
                ///get property value
                object propValue;
                if (pinfo != null)
                    propValue = pinfo.GetValue(item);
                else
                    propValue = fInfo.GetValue(item);
                ///check data type
                if (!(BLSystem.BLSystem.Common.Is.IsNumber(propValue)))
                    throw new Exception(string.Format("Property is not a number : {0}", propValue));

                propValues.Add(double.Parse(propValue.ToString()));
            }
            ///Sort
            double newValue = 0;
            object newValueEntry;
            int idy = 0;
            for (int idx = 0; idx < propValues.Count(); idx++)
            {
                newValue = propValues[idx];
                newValueEntry = listentry[idx];
                idy = idx;
                if (idy > 0)
                    while (idy > 0 && propValues[idy - 1] > newValue)
                    {
                        propValues[idy] = propValues[idy - 1];
                        listentry[idy] = listentry[idy - 1];
                        idy--;
                    }
                propValues[idy] = newValue;
                listentry[idy] = newValueEntry;
            }

            return new object[2] { propValues, listentry };
        }
</pre>
